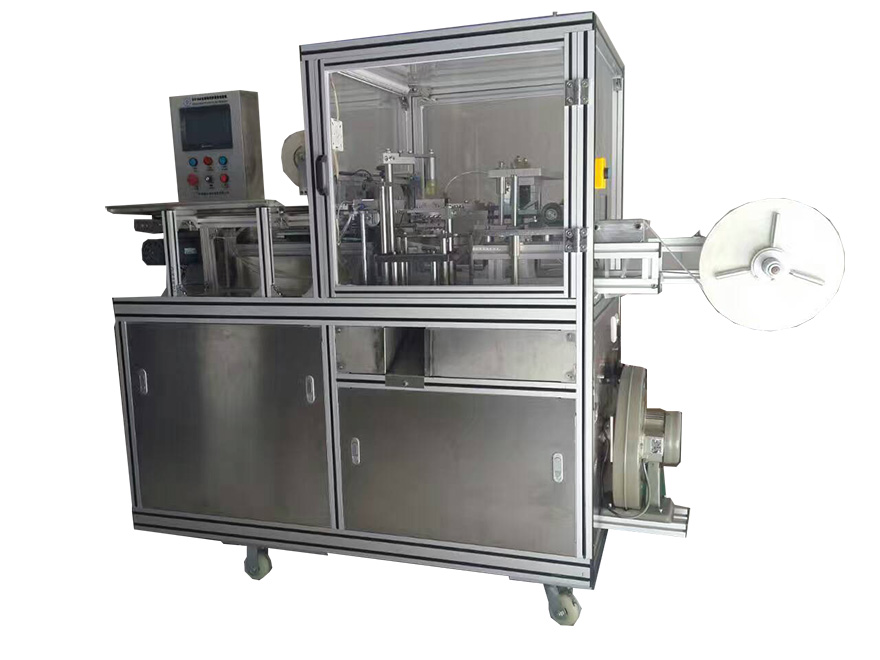

Water soluble film cleaner packaging machine
Description

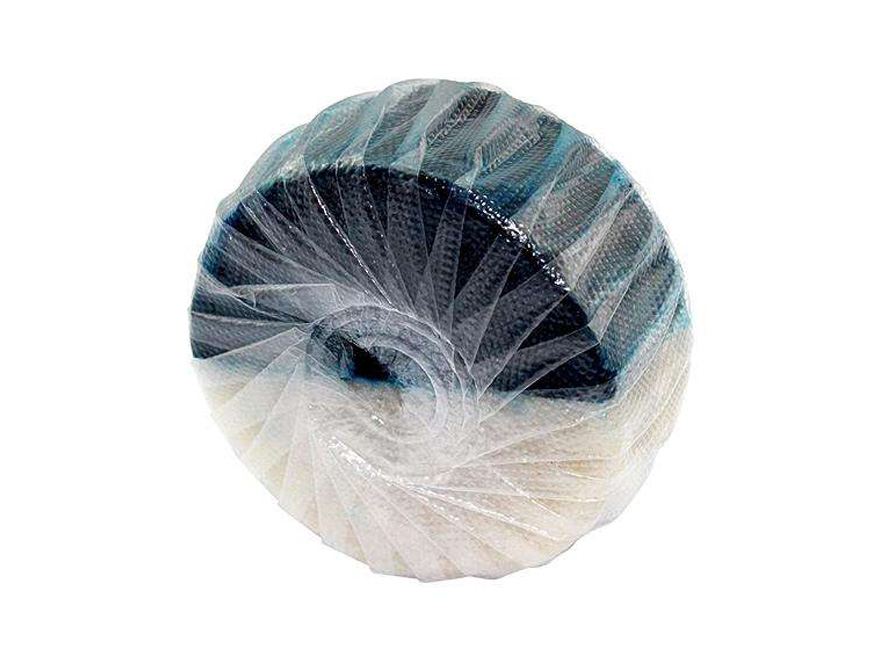

This machine can achieve pleat packing for toilet cleaner/urinal block with water soluble film
Technical Features
Standard for 40-60mm round block
Oversize block packing can be customized
Can be linkage with the block cleaner production line

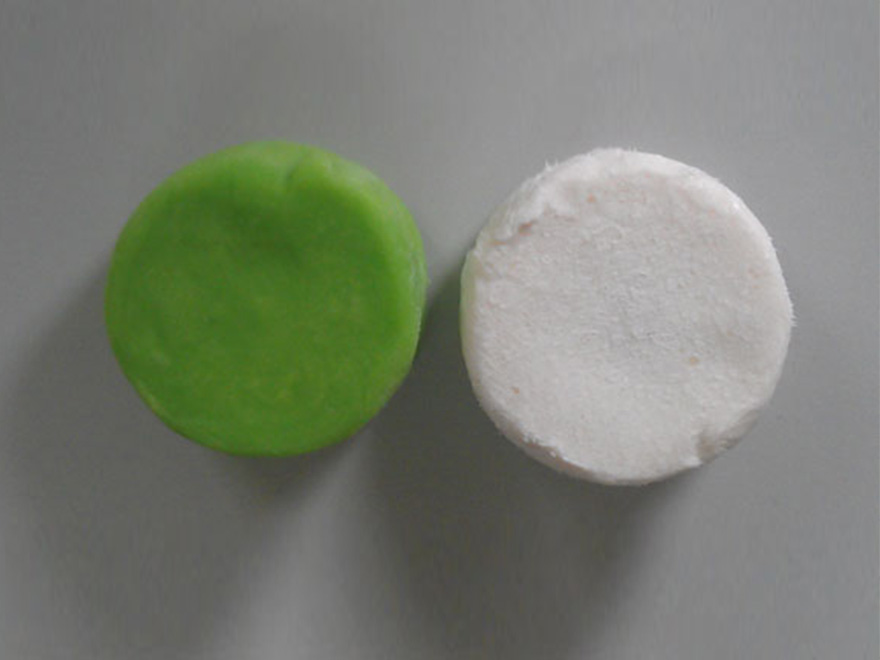

Standard for 40-60mm round soap
Oversize soap packing can be customized
Packing Speed: 50-65pcs/min
Diameter: φ40--φ60mm
Height(thickness): 12-30mm
Wrapping material:
Roll Outer: φ≤300mm
Soluble film width: 90-145mm
Roll Inter: φ≤75mm
Power: AC 220V/50Hz or 60Hz, 2.0KW (or customize as per customer’s requirement)
Machine weight: 650k
Machine Size: 2200*950*1500mm(L*B*H)
Compressed air: 0.5～0.6Mpa
Applications
Suitable for batch production soap factory
